xArm Blender Animation

An animator thinks in keyframes and a controller takes joint angles. This is the thing in between.

The rig

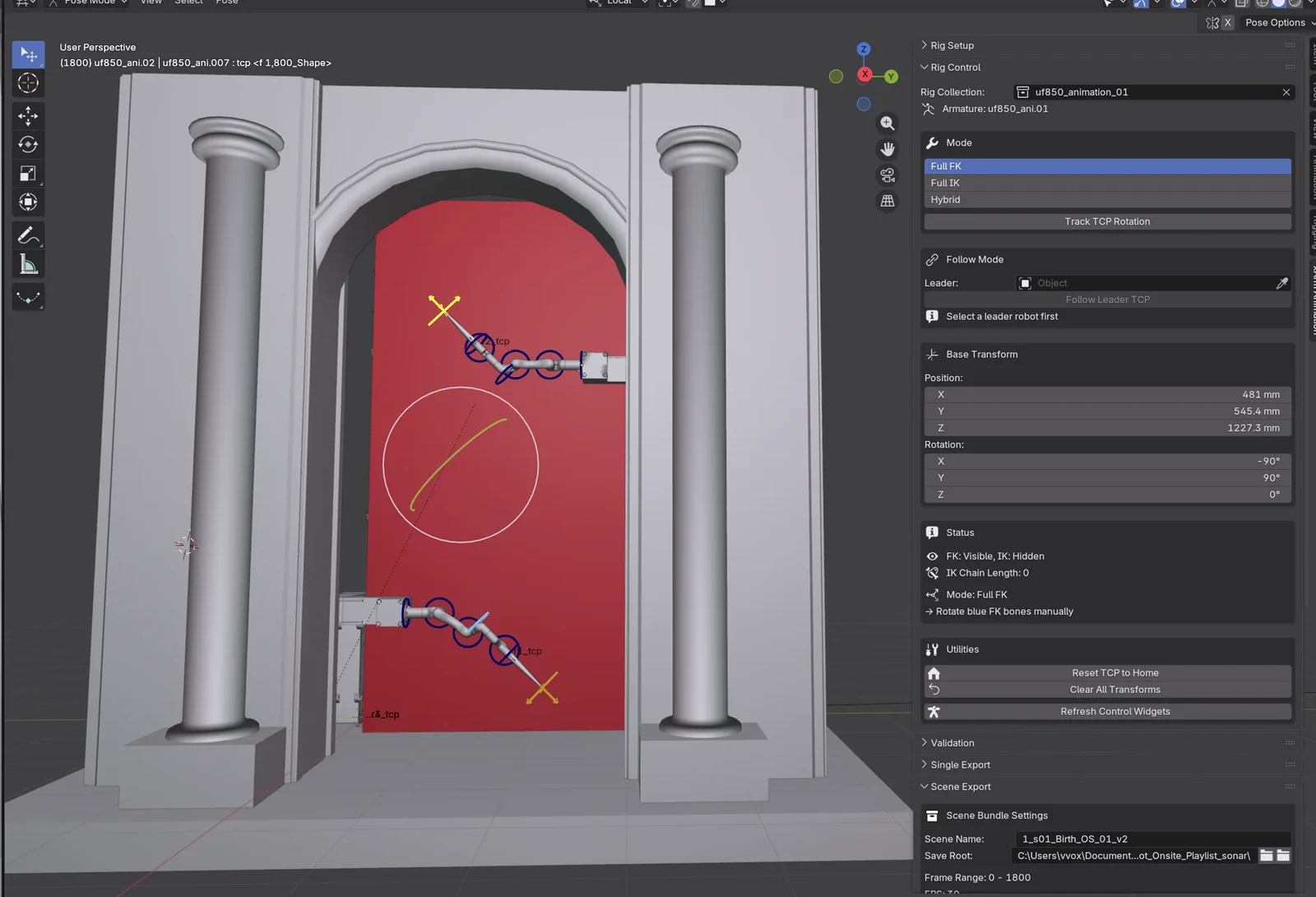

The arm comes in as a Blender rig with three control modes: Full FK for posing joints directly, Full IK for dragging the tool where you want it, and a hybrid for holding some joints while solving the rest.

The base transform is set in millimetres to where the arm is bolted: this one sits at Z 1227.3 mm, rotated −90° and 90°. The rig must match the physical mount.

One arm can also follow another's tool point. Follow Leader TCP makes the second robot track the first, so a two-arm move is authored once and stays in step by construction.

Validation before export

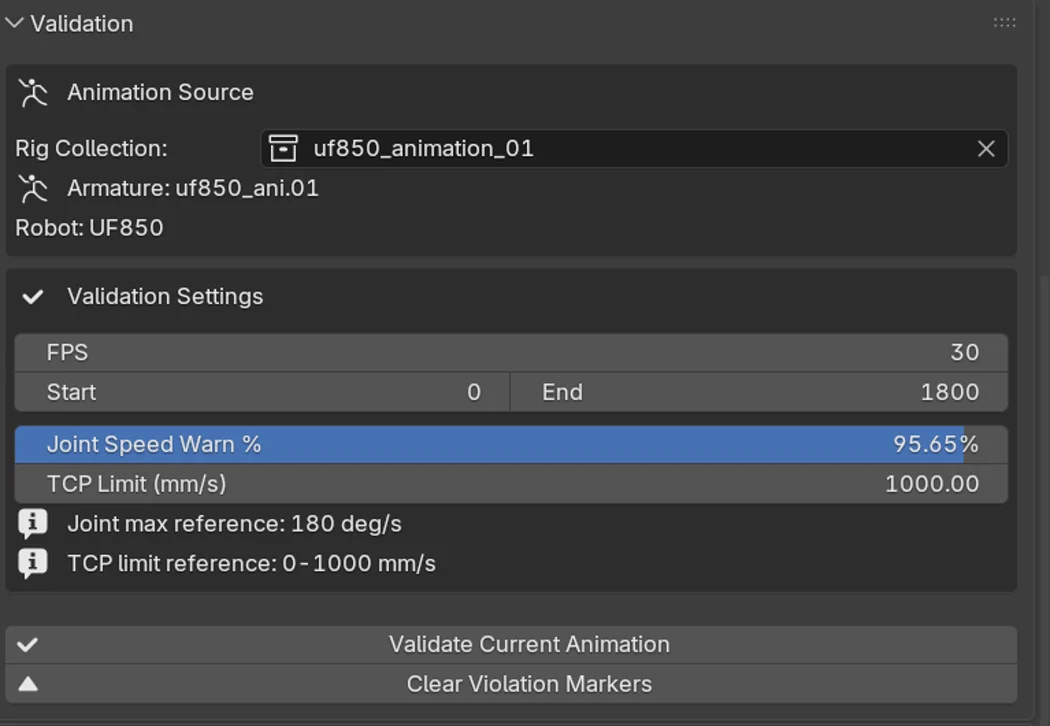

Blender will happily animate a joint through any angle in a frame. The robot will not. So the addon checks the take against the profile before anything leaves: joint limits, joint speed against a 180 deg/s reference, and tool speed against a TCP ceiling, here 1000 mm/s.

Violations are written back onto the timeline as markers, so a failure is a frame you can jump to rather than a number in a log.

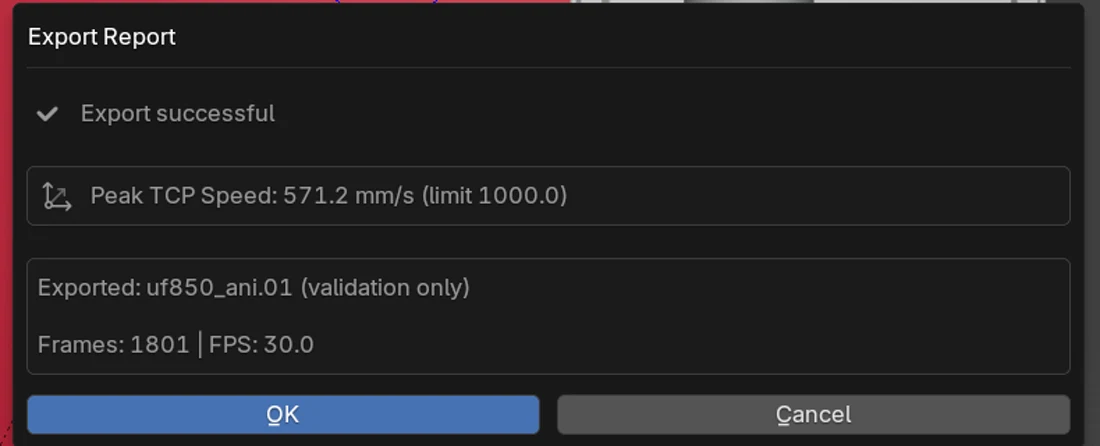

Export reports what it measured:

What leaves Blender

A single take bakes to joint CSV. A whole show exports as a scene bundle: the clips, a metadata file, and the environment as a collision URDF. That is what Motion-Core imports and re-checks in simulation before it drives anything.

The addon can also play a CSV straight to a connected arm, which is how a move gets sanity-checked on real hardware without the rest of the stack running.
